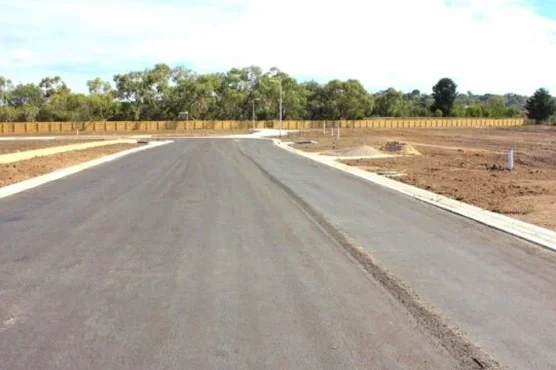

Rigid Pavement Design for Irish Ground Conditions: Newbridge Lab Testing

Newbridge sits on the River Liffey’s gravel terraces, where a mix of glacial till and limestone bedrock has shaped the town’s rapid industrial expansion. The Whitewater Shopping Centre footprint and the logistics parks along the Milltown feeder road all rest on ground that demands precise rigid pavement design. Our materials laboratory in the region handles the full IS EN 13877 series, from core flexural strength to dowel alignment checks. Before a single panel is poured, we quantify the subgrade reaction modulus under site-specific moisture conditions. This is not a copy-paste design—it is a pavement section calibrated to the graded aggregate and cement-bound layers that actually arrive on site in Newbridge. Working alongside contractors who also need CBR road testing for access routes, we ensure the entire pavement system works from subbase up.

A properly designed rigid pavement in Newbridge starts with the subgrade modulus, not the slab thickness.

Our service areas

How we work

A recent project at a distribution centre off the R445 showed exactly why local validation matters. The contractor placed a 225 mm C40/50 concrete slab on a 150 mm lean-mix subbase, but early-age joint spalling appeared within three months. We cored the slab and ran compressive strength tests under IS EN 12390-3, discovering that the specified 28-day strength was hit, yet the joint saw-cut timing was off by nearly 18 hours due to cooler ground temperatures in that part of Newbridge. Our rigid pavement design approach now ties joint detailing to maturity curves rather than calendar days. For heavy-goods yards, we also cross-reference the slab’s load-transfer efficiency with plate load test data taken at subgrade level, and for brownfield sites we often recommend MASW profiling to map buried services or variable fill before finalising the pavement cross-section.

Rigid Pavement Design for Irish Ground Conditions: Newbridge Lab Testing — Technical reference — Newbridge

Local considerations

The core risk we see in Newbridge is differential curling at slab corners where the subbase material transitions from clean limestone crusher-run to silty glacial deposits—often within a 20-metre stretch. Our lab catches this through Benkelman beam testing and k-value spot checks before the concrete pour. When the base support isn’t uniform, the slab’s top fibres go into tension under axle loads, and micro-cracking starts long before the first forklift hits the floor. We also run IS EN 13877-2 core scans to verify thickness and detect honeycombing at dowel cages. In one Newbridge yard, poorly compacted utility trench backfill caused edge spalling within six weeks of opening. That site now has a rigid pavement design that specifies geogrid-reinforced capping layers across all service crossings.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.co

Video overview

Applicable standards

IS EN 13877-1:2013 (Concrete pavements – materials), IS EN 13877-2:2013 (Concrete pavements – functional requirements), IS EN 13877-3:2004 (Concrete pavements – dowels and tie bars), IS EN 12390-3:2019 (Compressive strength of hardened concrete), NRA HD 26/06 (Pavement design for national roads)

Technical data

Parameter	Typical value
Concrete compressive strength class	C32/40 to C40/50 (IS EN 206)
Characteristic flexural strength	4.5 – 5.5 MPa (28-day)
Slab thickness range (industrial)	180 – 260 mm
Joint spacing (unreinforced)	4.0 – 5.5 m
Subgrade reaction modulus (k-value)	40 – 80 MPa/m (target after stabilisation)
Dowel bar diameter (tied joints)	25 – 32 mm
Freeze-thaw resistance (XF4 exposure)	Validated per IS EN 13877-3

Common questions

What joint spacing and detailing is suitable for a Newbridge industrial yard with reach-stacker traffic?

For reach-stacker axle loads up to 80 tonnes, we typically design unreinforced slabs with 4.5 m square joint bays and 32 mm dowel bars at 300 mm centres. The saw-cut depth is set at one-third of slab thickness, and the cut timing is tied to concrete maturity rather than hours after finishing. All detailing follows IS EN 13877-3, with load-transfer efficiency verified on site using FWD testing after 28 days.

How much does rigid pavement design and testing cost for a small logistics yard in the Newbridge area?

For a yard up to roughly 2,000 m², the combined package of subgrade investigation, concrete mix validation, and post-construction core testing generally falls between €1,900 and €5,130. The final figure depends on the number of plate bearing tests required, the concrete classes specified, and the extent of joint audit scanning included in the scope.

Can existing cracked industrial slabs in Newbridge be evaluated for reuse under a rigid pavement overlay?

Yes. We core the existing slab to measure residual thickness and compressive strength, then run a Falling Weight Deflectometer survey to map the effective k-value and identify voided areas. The overlay thickness is designed using IS EN 13877-1 bonded or unbonded overlay procedures, with any required crack stabilisation grouting specified before the new surface is placed.
