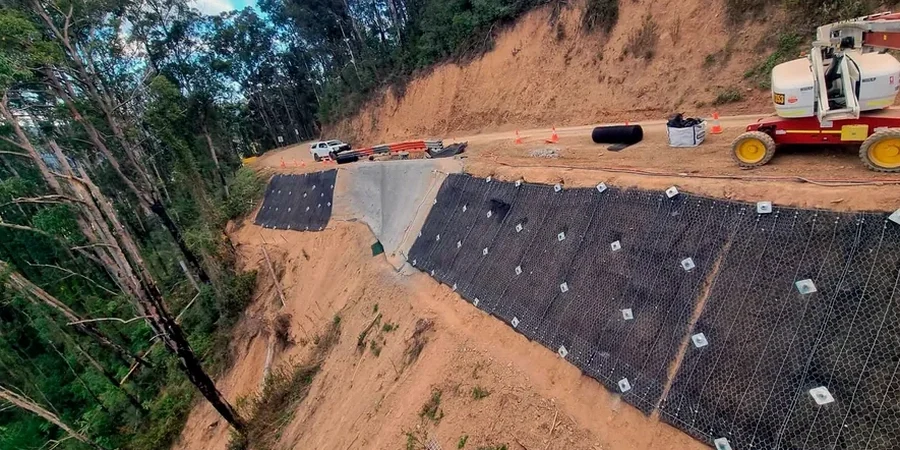

Slope Stability Analysis in Newbridge: Protect Your Project from Ground Failure

A common misstep in Newbridge is treating every cut slope as if it stands on solid limestone. The reality is far more complex. The town’s subsoil is a patchwork of glacial till, water-bearing sands, and weathered limestone bedrock, all of which behave differently under load and rainfall. When a contractor excavates without first quantifying the shear strength of these materials, the results can be catastrophic—delays, unplanned benching, or a slope failure that shuts down the entire site. A rigorous slope stability analysis does more than satisfy the planning authority; it provides the factor of safety that keeps your earthworks on schedule and your crews out of harm’s way. Our geotechnical team in Kildare delivers this analysis using site-specific data, never generic assumptions. For projects on variable ground, we often integrate findings from a CPT test to map continuous stratigraphy before finalizing the slope model.

A slope in Newbridge’s glacial till can stand vertical for days at a time and then fail in minutes after a heavy rainfall event—drained strength governs the long-term risk.

How we work

The ground conditions contrast sharply between the eastern side of Newbridge near the River Liffey and the elevated drumlin areas to the west. Close to the Liffey, alluvial silts and loose granular deposits demand a drained analysis that accounts for high groundwater during winter months; the effective stress parameters here are often lower than a visual inspection would suggest. Up on the drumlins, stiff glacial till dominates, and short-term, undrained conditions during excavation can control the design. Our analysis applies the appropriate approach—total stress or effective stress—based on exactly where you intend to dig. We model the critical slip surface using limit equilibrium methods, verify against finite element deformation where necessary, and deliver a report that clearly states the calculated factor of safety against the acceptable thresholds in the Irish National Annex to Eurocode 7. Every model is calibrated with real laboratory data from triaxial compression tests and direct shear tests on undisturbed samples taken from your specific site in Newbridge.

Local considerations

The driving rain that sweeps across Kildare from the Atlantic is the single greatest enemy of an earth slope in Newbridge. Sustained precipitation saturates the upper layers of glacial till, eliminating the matric suction that provides apparent cohesion and triggering shallow translational slides. On a construction site, a cut slope that was stable in August can become a liability by November. The risk is compounded when the till contains lenses of sand and gravel—these act as internal drains that concentrate water and raise pore pressures at clay-sand interfaces. Our analysis explicitly models these rainfall scenarios, using design storm data and measured permeability from in-situ tests to predict how the phreatic surface will rise. We don’t just give you a number; we show you the consequence of a 1-in-100-year weather event on your excavation or embankment, allowing you to design drainage and reinforcement measures that actually work for Newbridge’s climate.

Applicable standards

I.S. EN 1997-1:2004 (Eurocode 7: Geotechnical design) with Irish National Annex, I.S. EN 1997-2:2007 (Ground investigation and testing), I.S. EN 1990:2002+A1:2005 (Basis of structural design) for consequence classes and reliability, CIRIA C750 (Good practice on embedded retaining walls in glacial soils), Transport Infrastructure Ireland (TII) Specification for Road Works, Series 600

Technical data

Parameter	Typical value
Analysis Method	Limit equilibrium (Bishop, Morgenstern-Price) + FE verification
Applicable Standard	I.S. EN 1997-1:2004 (Eurocode 7) with Irish National Annex
Material Models	Mohr-Coulomb (drained/undrained), Hoek-Brown for rock cuts
Key Input Parameters	c’, φ’, cu, unit weight, pore water pressure ratio (ru)
Minimum FoS (Permanent)	1.25–1.40 depending on consequence class per I.S. EN 1990
Sample Types	Shelby tube, block samples, rotary core, SPT disturbed samples
Software	Rocscience Slide2 / RS2, PLAXIS 2D, GeoStudio SLOPE/W
Report Deliverable	Full calculation package with critical slip surfaces and sensitivity analysis

Common questions

What is the typical cost of a slope stability analysis for a residential site in Newbridge?

For a single dwelling or small cut-and-fill site in Newbridge, the analysis typically falls between €1,060 and €3,570, including the required ground investigation and reporting. The final price depends on the slope height, the complexity of the soil profile, and whether laboratory triaxial or shear box testing is needed. We provide a fixed-fee proposal after a site visit.

How does the glacial till in Newbridge affect slope stability?

The glacial till around Newbridge is an unsorted mixture of clay, silt, sand, and cobbles deposited during the last ice age. Its drained shear strength can be high, but it is often fissured and contains water-bearing lenses. The key risk is that the till’s permeability varies dramatically over short distances, making pore water pressure prediction difficult without proper in-situ testing and careful modeling of groundwater conditions.

Which Eurocode factors of safety do you use for permanent slopes?

We follow the Irish National Annex to I.S. EN 1997-1, which requires a minimum factor of safety against shear failure of 1.25 to 1.40 for permanent slopes, depending on the consequence class. The design approach (DA1-1 or DA1-2) is selected based on the failure mechanism; for slopes, we typically apply partial factors to the soil strength parameters and check that the calculated factor of safety on the resistance side meets the required threshold.

What triggers a slope failure during construction in Newbridge?

The most common triggers are uncontrolled surface water runoff and unplanned excavations. A contractor may open a cut that temporarily steepens the slope beyond its short-term undrained capacity, or a heavy rainfall event saturates the face before drainage measures are in place. Our analysis identifies these temporary construction stages as critical cases and specifies the required benching angles and drainage to maintain stability throughout the work.
